● 输出温度影响（Temperature Effect On Output）∶±0.05;±0.1%FS/10 ℃
● 输出灵敏度（Rated Output）∶1.5~2.0 mV/V
● 激励电压（Excitation）∶12 VDC
● 非线性（Nonlinearity）∶±0.05;±0.1% FS
·绝缘电阻（Insulation Resistance）∶2000 MO/100 VDC
● 滞后（Hysteresis）∶±0.05;±0.1%FS
● 输入电阻（Input Resistance）∶380±5/760±5 Q
● 重复性（Repeatability）∶±0.05;±0.1%FS
●工作温度（Operating Temperature）∶-35~+80 ℃
●输出电阻（Output Resistance）∶350±5/700±5 Q
● 零点输出（Zero Output）∶0~±1%FS
温度补偿范围（Compensated Temperature）∶室温~+60℃
●过载（Overload Capacity）∶120 %FS
●零点温度影响（Temperature ffect On Zero）∶±0.05;±0.1%FS/10 ℃

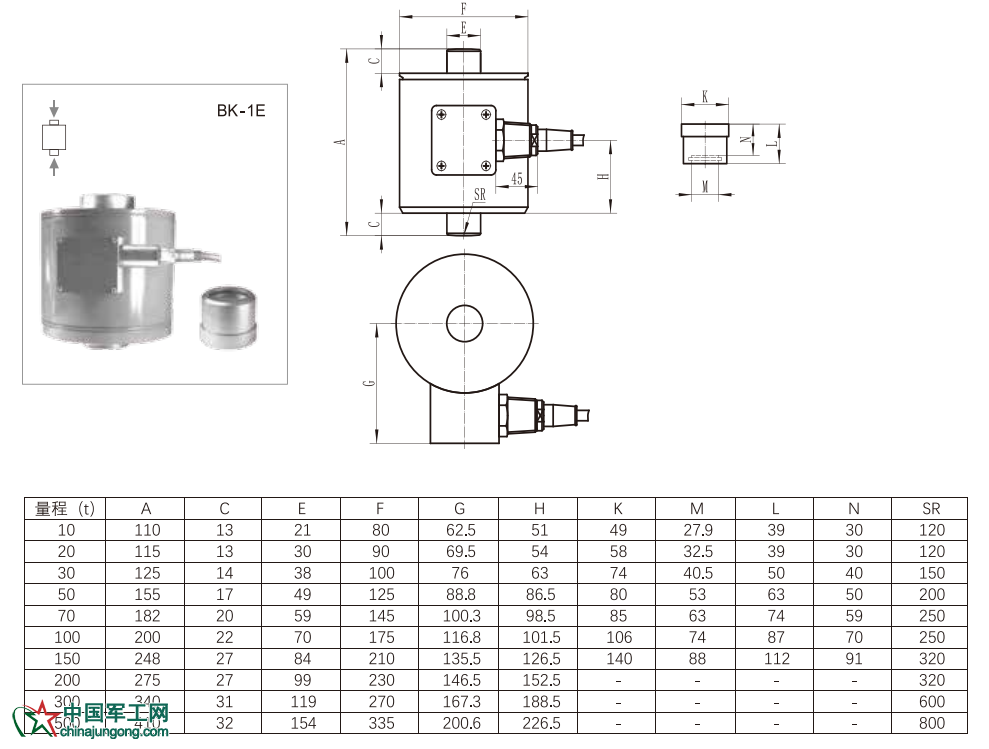

![F23[E14N3CZ6YEZF6C]%T)R](http://www.chinajungong.com/file/upload/202204/06/1015473112918.png)
![G5INF8KIF[2]J0G@928(S%3](http://www.chinajungong.com/file/upload/202204/06/1015561112918.png)

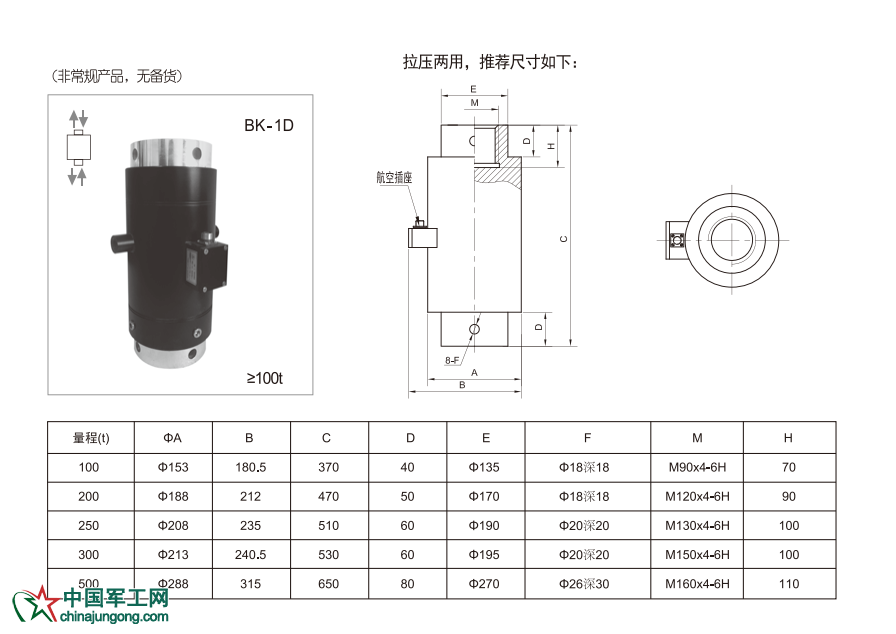

![@}MMM`9A4[8MC2P92]EKO%7](http://www.chinajungong.com/file/upload/202204/06/1016054112918.png)
